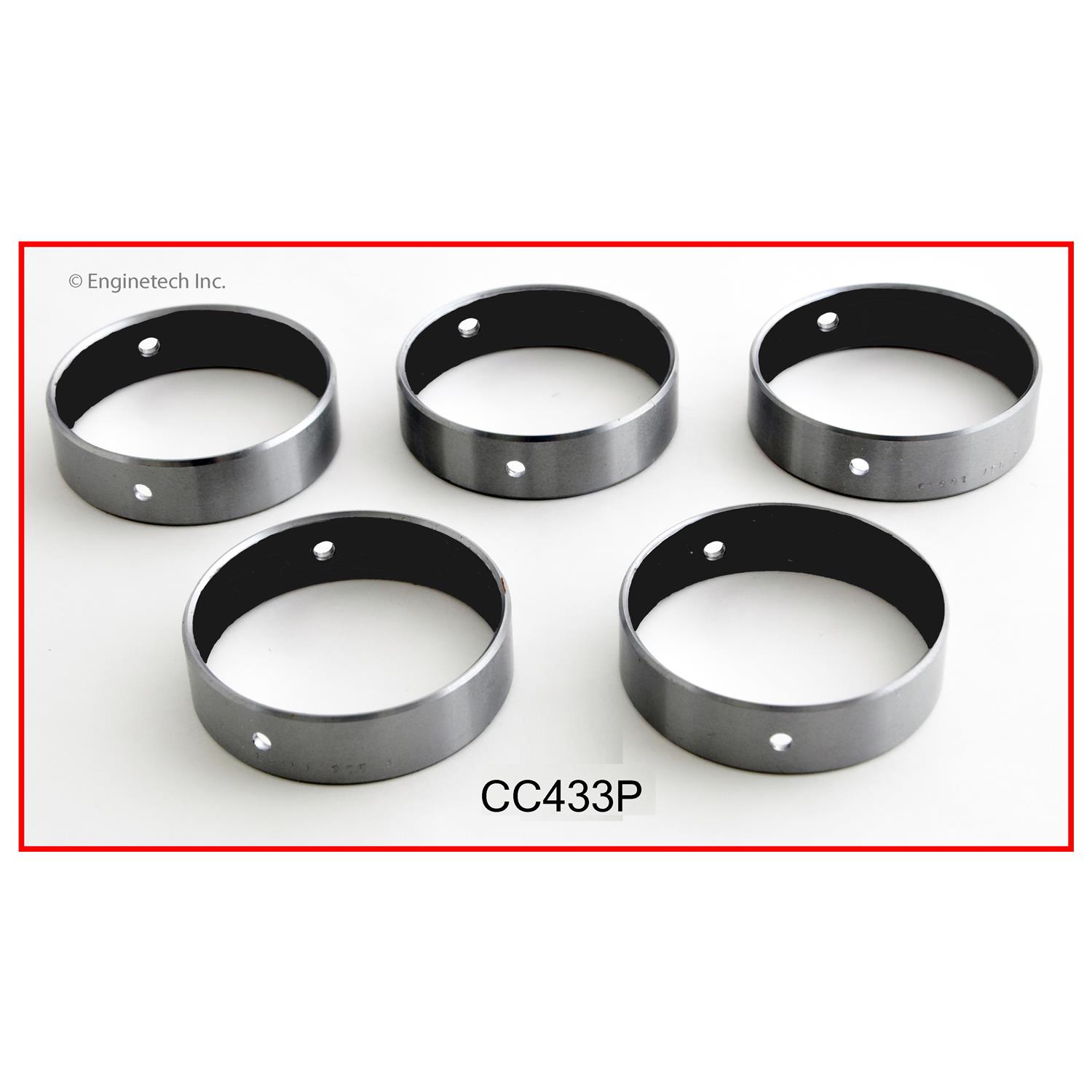

CC433P

Bearing Set - Cam

3 480 ₽

Описание

High performance PolyDyn coating. From late '03 thru '07 with #1 & 5 housing ID of 2.347". With 0.640" wide shells.

Характеристики

Size

STD

year

06-14

model

notes

High performance PolyDyn coating. Thru '07 with 0.640" wide shells.

Spec 1 Sizes

N/A

Spec 1 Width

0.635"

Spec 2 Sizes

N/A

Spec 2 Width

0.640"

Spec 3 Sizes

N/A

Spec 3 Width

0.640"

Spec 1 Position

1-5

Spec 2 Position

2-4

Spec 3 Position

Spec 1 Shell P/N

339

Spec 2 Shell P/N

336

Spec 3 Shell P/N

338

Spec 1 Housing Bore

2.3460-2.3480"

Spec 2 Housing Bore

2.3260-2.3280"

Spec 3 Housing Bore

2.3079-2.3098"

Spec 1 Oil Clearance

0.0004-0.0063"

Spec 2 Oil Clearance

0.0004-0.0063"

Spec 3 Oil Clearance

0.0004-0.0063"

Spec 1 Shaft Diameter

2.1650-2.1669"

Spec 1 Wall Thickness

0.0895"

Spec 2 Shaft Diameter

2.1650-2.1669"

Spec 2 Wall Thickness

0.0795"

Spec 3 Shaft Diameter

2.1650-2.1669"

Spec 3 Wall Thickness

0.0697"

Кросс-замены

Dura-Bond

CHP-23T

Двигатели

Двигатель

Бренды

4.8L / 293 OHV V8 16V Chev. LS Gen III/IV 96.00mm Bore 99-14

5.3L / 325 OHV V8 16V Chev. LS Gen III/IV 96.00mm Bore 99-17

5.7L / 346 OHV V8 16V Chev. LS Gen III 99.00mm Bore 97-05

6.0L / 364 OHV V8 16V Chev. LS Gen III/IV 101.62mm Bore 99-17

6.2L / 376 OHV V8 16V Chev. LS Gen IV 103.25mm Bore 07-14

7.0L / 427 OHV V8 16V Chev. LS Gen IV 4.125" Bore 06-15

Package Detail

Weight

0.4 lbs

Package Size

2.5x2x4.5"
