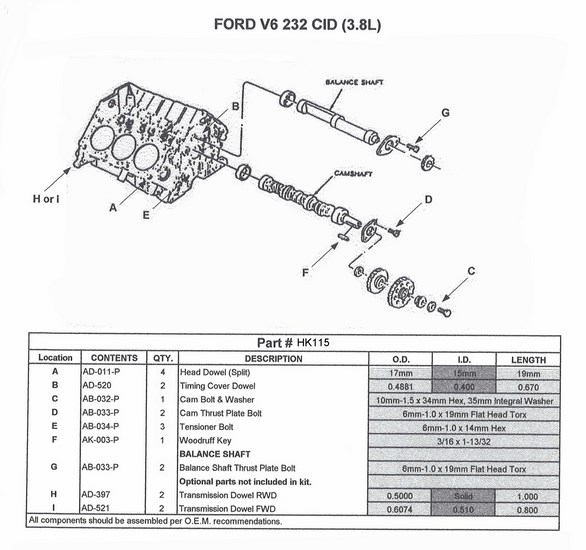

Small parts hardware kit.
notes
Small parts hardware kit.
Spec 1 Contents
Head Dowel
Spec 2 Contents
Timing Cover
Spec 3 Contents
Cam Bolt w/washer
Spec 4 Contents
Cam Thrust Palte Bolt
Spec 5 Contents
Tensioner Bolt
Spec 6 Contents
Woodruff Key
Spec 7 Contents
Balance Shaft Thrust Bolt
Spec 1 Description
17mm x 15mm x 19mm
Spec 2 Description
.4881 x .400 x 670
Spec 3 Description
10mm-1.5 x 34mm Hex Drive.35mm Wshr
Spec 4 Description
6mm-1.0 x 19mm Flat Head Torx Drive
Spec 5 Description
6mm-1.0 x 14mm Hex
Spec 6 Description
3/16 x 1-13/32
Spec 7 Description
6mm-1.0 x 19mm Flat Head Torx Drive
3.8L / 232 OHV V6 12V "3,4,C" Nat. Asp. 96.80mm Bore 82-04
FORD
3.8L / 232 OHV V6 12V "R" S/C 96.80mm Bore 89-95
FORD
FO232C | 3.8L / 232 OHV V6 12V "3,4,C" Nat. Asp. 96.80mm Bore 82-04
FORD,
MERCURY,
LINCOLN
FO232C1 | 3.8L / 232 OHV V6 12V "R" S/C 96.80mm Bore 89-95
FORD
