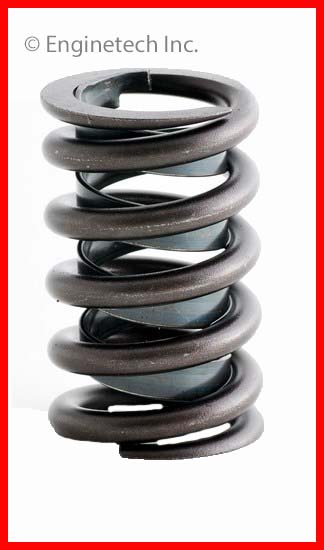

Int. & Exh. High performance. Except '73-76 exhaust. 2.023" Free Ht. W/damper. 1.260" OD. 118 lbs closed @ 1.700", 318 lbs open @ 1.210". Coil bind at 1.160". (100 pack).
4.3L / 262 OHV V8 16V Chev. Small Block 3.671" Bore 75-76
GM
4.3L / 262 OHV V6 12V Chev. Six Cylinder 4.000" Bore 85-14
GM
4.4L / 267 OHV V8 16V Chev. Small Block 3.500" Bore 79-82
GM
4.6L / 283 OHV V8 16V Chev. Small Block 3.875" Bore 57-67
GM
4.9L / 302 OHV V8 16V Chev. Small Block 4.000" Bore 67-69
GM
5.0L / 305 OHV V8 16V Chev. Small Block 3.736" Bore 76-02
GM
5.0L / 307 OHV V8 16V Chev. Small Block 3.875" Bore 68-73
GM
5.0L / 307 OHV V8 16V Chev. 3.875" Bore 68-73
GM,
GM, CHEVROLET
5.3L / 327 OHV V8 16V Chev. Small Block 4.000" Bore 62-69
GM
5.7L / 350 OHV V8 16V Chev. Gen I Small Block 4.000" Bore 67-02
GM
5.7L / 350 OHV V8 16V Chev. 4.000" Bore 68-02
GM, CHEVROLET
6.3L / 383 OHV V8 16V Chev. Small Block Stroker 4.000" Bore 67-02
GM
6.6L / 400 OHV V8 16V Chev. Small Block 4.125" Bore 70-80
GM
GM307T-CH | 5.0L / 307 OHV V8 16V Chev. 3.875" Bore 68-73
CHEVROLET,
GMC
GM350T-CH | 5.7L / 350 OHV V8 16V Chev. 4.000" Bore 68-02
CHEVROLET,
GMC,
CADILLAC
