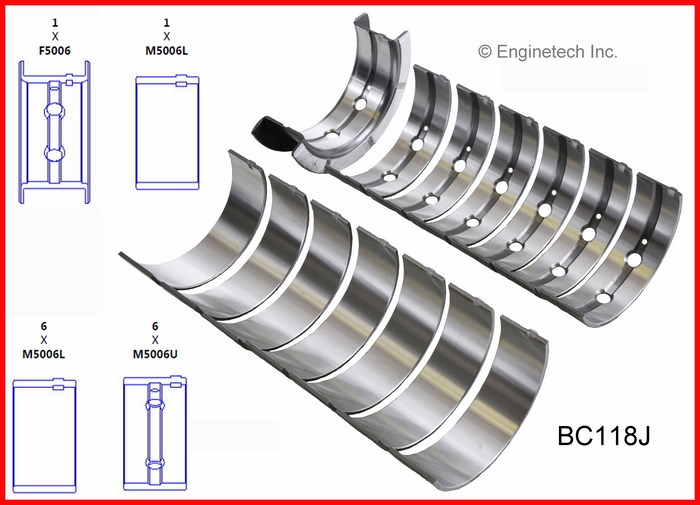

BC118J

Bearing Set - Main

Описание

Fits engines with half flanged thrust bearing. Flange on upper half only.

Характеристики

Size

STD, .25, .50, .75

year

24-24

model

3500

notes

Upper thrust bearing has a flange.

Spec 1 Sizes

N/A

Spec 1 Width

1.143"

Spec 2 Sizes

N/A

Spec 2 Width

1.470"

Spec 1 Position

1-2-3-4-5-7

Spec 2 Position

Spec 1 Shell P/N

M5006U/L

Spec 2 Shell P/N

F5006

Spec 1 Housing Bore

3.4638-3.4652"

Spec 2 Housing Bore

3.4638-3.4652"

Spec 1 Oil Clearance

0.0017-0.0047"

Spec 2 Oil Clearance

0.0017-0.0047"

Spec 1 Shaft Diameter

3.2672-3.2682"

Spec 1 Wall Thickness

0.0965-0.0970"

Spec 2 Shaft Diameter

3.2672-3.2682"

Spec 2 Wall Thickness

0.0965-0.0970"

Кросс-замены

Fed. Mogul

7216M

Mahle Clevite

MS-1717P

Двигатели

Двигатель

Бренды

5.9L / 359 OHV L6 12V "8,C,D" Cummins 4.0157" Bore 89-98

CHRYSLER, DODGE, RAM

5.9L / 359 OHV L6 24V "6,7,C" Cummins 4.0157" Bore 98-09

CHRYSLER, DODGE, RAM

6.7L / 408 OHV L6 24V "A,L" Cummins 4.213" Bore 07-25

RAM, CHRYSLER, DODGE, RAM

CR359T | 5.9L / 359 OHV L6 12V "8,C,D" Cummins 4.0157" Bore 89-98

DODGE

CR359TA | 5.9L / 359 OHV L6 24V "6,7,C" Cummins 4.0157" Bore 98-09

DODGE

CR408T | 6.7L / 408 OHV L6 24V "A,L" Cummins 4.213" Bore 07-25

RAM, DODGE

Package Detail

Weight

2.5 lbs

Package Size

3.5x5.5x14.75"
