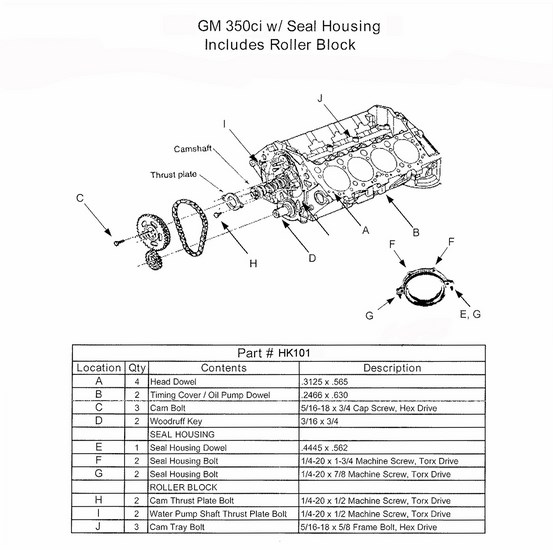

Small parts hardware kit. Late engines with 1pc. rear main seal.
notes
Engines with 1pc. rear main seal. Small parts hardware kit.
Spec 1 Contents
Head Dowel
Spec 2 Contents
Tim. Cover / Oil Pump Dowel
Spec 4 Contents
Woodruff Key
Spec 5 Contents
Seal Housing Dowel
Spec 6 Contents
Seal Housing Bolt
Spec 7 Contents
Seal Housing Bolt
Spec 8 Contents
Cam Thrust Plate Bolt
Spec 9 Contents
Water pump Shaft Bolt
Spec 10 Contents
Cam Tray Bolt
Spec 1 Description
.3125 x .565
Spec 2 Description
.2466 x .630
Spec 3 Description
5/16 x 3/4 Cap Screw, Hex Drive
Spec 4 Description
3/16 x 1 3/8
Spec 5 Description
.4445 x .562
Spec 6 Description
1/4-20 x 1-3/4 Machine Screw, Torx Drive
Spec 7 Description
1/4-20 x 7/8 Machine Screw, Torx Drive
Spec 8 Description
1/4-20 x 1/2 Machine Screw, Torx Drive
Spec 9 Description
1/4-20 x 1/2 Machine Screw, Torx Drive
Spec 10 Description
15/16-18 x 5/8 frame Bolt, Hex Drive
5.0L / 305 OHV V8 16V Chev. Small Block 3.736" Bore 76-02
GM
5.0L / 305 OHV V8 16V Chev. 3.736" Bore 76-02
GM, CHEVROLET
5.0L / 305 OHV V8 16V Chev. 3.736" Bore 76-93
GM
5.7L / 350 OHV V8 16V Chev. Gen I Small Block 4.000" Bore 67-02
GM
5.7L / 350 OHV V8 16V Chev. 4.000" Bore 67-97
GM
5.7L / 350 OHV V8 16V Chev. 4.000" Bore 68-02
GM, CHEVROLET
5.7L / 350 OHV V8 16V Chev. 4.060 Bore 95-96
AM GENERAL
6.3L / 383 OHV V8 16V Chev. Small Block Stroker 4.000" Bore 67-02
GM
AM350T-HU | 5.7L / 350 OHV V8 16V Chev. 4.060 Bore 95-96
AM GENERAL
GM305C-CH | 5.0L / 305 OHV V8 16V Chev. 3.736" Bore 76-93
CHEVROLET,
PONTIAC,
CADILLAC,
OLDSMOBILE,
BUICK
GM305T-CH | 5.0L / 305 OHV V8 16V Chev. 3.736" Bore 76-02
CHEVROLET,
GMC
GM350CA-CH | 5.7L / 350 OHV V8 16V Chev. 4.000" Bore 67-97
BUICK,
CADILLAC,
CHEVROLET,
OLDSMOBILE,
PONTIAC
GM350T-CH | 5.7L / 350 OHV V8 16V Chev. 4.000" Bore 68-02
CHEVROLET,
GMC,
CADILLAC
