EngineTechОригинальная продукция
Детали двигателя EngineTech
Артикул CC431

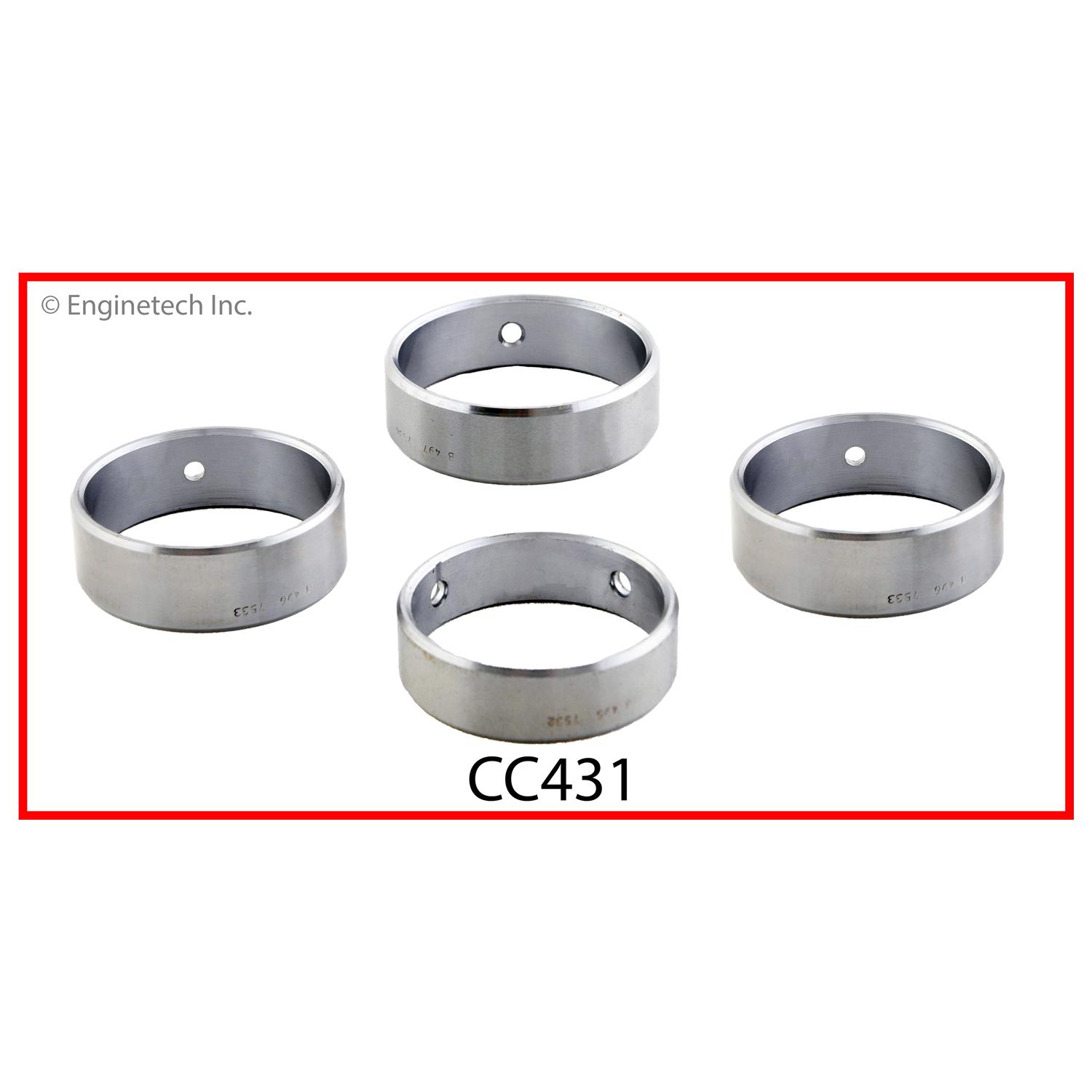

Bearing Set - Cam
.080" oversized OD. Std. ID. With wide center bearings. Engines with 1.868" cam journals.
Оригинальная упаковкаEngineTech
Технический паспорт
Вся информация о детали
Проверьте параметры и совместимость перед оформлением заказа.
Характеристики
Параметры из каталога EngineTech
- Производитель
- EngineTech
- Артикул
- CC431
- Size
- .080
- year
- 80-80
- model
- Phoenix
- notes
- .080" oversized OD. Std. ID. With wide center bearings.
- Spec 1 Width
- 0.625"
- Spec 2 Width
- 0.720"
- Spec 3 Width
- 0.625"
- Spec 1 Position
- 1
- Spec 2 Position
- 2-3
- Spec 3 Position
- 4
- Spec 1 Shell P/N
- 495
- Spec 2 Shell P/N
- 496
- Spec 3 Shell P/N
- 497
- Spec 1 Housing Bore
- 2.0091-2.0100"
- Spec 2 Housing Bore
- 1.9988-2.0002"
- Spec 3 Housing Bore
- 2.0091-2.0100"
- Spec 1 Oil Clearance
- 0.0011-0.0051"
- Spec 2 Oil Clearance
- 0.0013-0.0053"
- Spec 3 Oil Clearance
- 0.0011-0.0051"
- Spec 1 Shaft Diameter
- 1.8677-1.8697"
- Spec 1 Wall Thickness
- 0.1096"
- Spec 2 Shaft Diameter
- 1.8677-1.8697"
- Spec 2 Wall Thickness
- 0.1045"
- Spec 3 Shaft Diameter
- 1.8677-1.8697"
- Spec 3 Wall Thickness
- 0.1096"
Кросс-замены
Производитель и номер аналога
- ACL
- 4C1102S-80
- King
- CS428BB-80
- Fed. Mogul
- 1429M-080
- Mahle Clevite
- SH-1364S-080
Двигатели
Применяемость из каталога
ДвигательБренд
2.8L / 173 OHV V6 12V "B,R" Chev. 89.00mm Bore 82-93GM, CHEVROLET
2.8L / 173 OHV V6 12V Chev. 3.504" Bore 84-86JEEP
2.8L / 173 OHV V6 12V Chev. 89.00mm Bore 80-89GM
2.8L / 2835 OHV V6 12V "R" GM 89.00mm Bore 89-91ISUZU
3.1L / 189 OHV V6 12V "D" Chev. 89.00mm Bore 90-95GM, CHEVROLET
3.1L / 189 OHV V6 12V "J,M,T,W" Chev. 89.00mm Bore 88-05GM
3.1L / 189 OHV V6 12V "V" Chev. Turbo 89.00mm Bore 89-90GM
3.1L / 3137 OHV V6 12V "Z" GM 89.00mm Bore 91-94ISUZU
3.4L / 207 OHV V6 12V "E,F" Chev. 92.00mm Bore 96-09GM, CHEVROLET
3.4L / 207 OHV V6 12V "E,S" Chev. 92.00mm Bore 93-05GM
3.5L / 214 OHV V6 12V "8" GM 94.00mm Bore 04-06GM
3.5L / 214 OHV V6 12V "L" GM 94.00mm Bore 05-07GM, CHEVROLET
AM173T-CH | 2.8L / 173 OHV V6 12V Chev. 3.504" Bore 84-86JEEP
GM173C-CH | 2.8L / 173 OHV V6 12V Chev. 89.00mm Bore 80-89BUICK, CHEVROLET, OLDSMOBILE, PONTIAC, CADILLAC
GM173T-CH | 2.8L / 173 OHV V6 12V "B,R" Chev. 89.00mm Bore 82-93CHEVROLET, GMC
GM189C-CH | 3.1L / 189 OHV V6 12V "J,M,T,W" Chev. 89.00mm Bore 88-05BUICK, CHEVROLET, PONTIAC, OLDSMOBILE
GM189CA-CH | 3.1L / 189 OHV V6 12V "V" Chev. Turbo 89.00mm Bore 89-90PONTIAC
GM189T-CH | 3.1L / 189 OHV V6 12V "D" Chev. 89.00mm Bore 90-95CHEVROLET, PONTIAC, OLDSMOBILE
GM207CB-CH | 3.4L / 207 OHV V6 12V "E,S" Chev. 92.00mm Bore 93-05CHEVROLET, PONTIAC, OLDSMOBILE
GM207T-CH | 3.4L / 207 OHV V6 12V "E,F" Chev. 92.00mm Bore 96-09CHEVROLET, PONTIAC, BUICK, OLDSMOBILE
GM214C-CH | 3.5L / 214 OHV V6 12V "8" GM 94.00mm Bore 04-06CHEVROLET
GM214T-CH | 3.5L / 214 OHV V6 12V "L" GM 94.00mm Bore 05-07BUICK, CHEVROLET, PONTIAC
IS2835T/GM | 2.8L / 2835 OHV V6 12V "R" GM 89.00mm Bore 89-91ISUZU
IS3137T/GM | 3.1L / 3137 OHV V6 12V "Z" GM 89.00mm Bore 91-94ISUZU
Упаковка
Данные производителя
- Weight
- 0.75 lbs
- Package Size
- 2.5x2x4.5"
