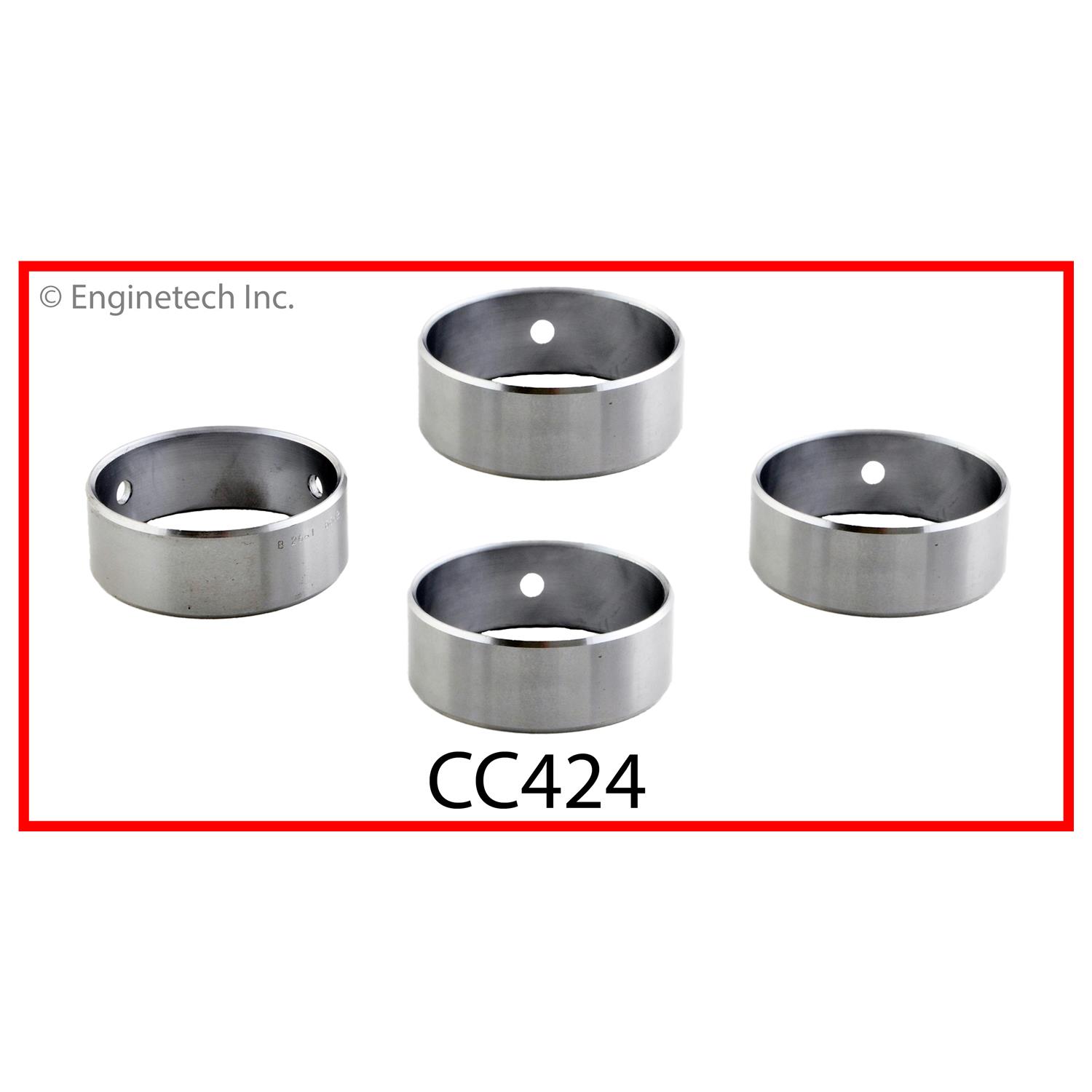

CC424

Bearing Set - Cam

1 930 ₽

Описание

.010" undersized ID for reground camshaft journals. Engines without "T" ID code stamped in front of right cylinder head.

Характеристики

Size

.010

year

78-78

model

Caballero

notes

.010" undersized ID.

Spec 1 Sizes

N/A

Spec 1 Width

0.740"

Spec 2 Sizes

N/A

Spec 2 Width

0.745"

Spec 3 Sizes

N/A

Spec 3 Width

0.740"

Spec 1 Position

Spec 2 Position

2-4

Spec 3 Position

Spec 1 Shell P/N

26-1

Spec 2 Shell P/N

27-1

Spec 3 Shell P/N

28-1

Spec 1 Housing Bore

2.0190-2.0210"

Spec 2 Housing Bore

2.0090-2.0110"

Spec 3 Housing Bore

1.9990-2.0010"

Spec 1 Oil Clearance

0.0007-0.0043"

Spec 2 Oil Clearance

0.0010-0.0052"

Spec 3 Oil Clearance

0.0007-0.0043"

Spec 1 Shaft Diameter

1.8582-1.8592"

Spec 1 Wall Thickness

0.0795"

Spec 2 Shaft Diameter

1.8282-1.8592"

Spec 2 Wall Thickness

0.0745"

Spec 3 Shaft Diameter

1.8582-1.8592"

Spec 3 Wall Thickness

0.0694"

Кросс-замены

ACL

4C1089S-10

King

CS414BB-10

Fed. Mogul

1463M-10

Mahle Clevite

SH-1350S-10

Двигатели

Двигатель

Бренды

3.3L / 200 OHV V6 12V "M" Chev. 3.500" Bore 78-79

GM, GM, CHEVROLET

3.8L / 229 OHV V6 12V "9,K" Chev. 3.736" Bore 80-84

GM, GM, CHEVROLET

4.3L / 262 OHV V6 12V Chev. 4.000" Bore 88-95

4.3L / 262 OHV V6 12V Vortec Chev. 4.000" Bore 85-16

GM, GM, CHEVROLET, WORKHORSE

4.3L / 262 OHV V6 12V "Z" Chev. 4.000" Bore 85-93

4.3L / 262 OHV V6 12V "Z" Chev. Turbo 4.000" Bore 91-93

GM, CHEVROLET

4.3L / 4293 OHV V6 12V "X,W" GM 101.60mm Bore 97-00

ISUZU

GM200C-CH | 3.3L / 200 OHV V6 12V "M" Chev. 3.500" Bore 78-79

CHEVROLET

GM200T-CH | 3.3L / 200 OHV V6 12V "M" Chev. 3.500" Bore 78-79

CHEVROLET, GMC

GM229C-CH | 3.8L / 229 OHV V6 12V "9,K" Chev. 3.736" Bore 80-84

CHEVROLET, PONTIAC

GM229T-CH | 3.8L / 229 OHV V6 12V "9,K" Chev. 3.736" Bore 80-84

CHEVROLET, GMC

GM262CB-CH | 4.3L / 262 OHV V6 12V "Z" Chev. 4.000" Bore 85-93

CHEVROLET, PONTIAC

GM262TB-CH | 4.3L / 262 OHV V6 12V Vortec Chev. 4.000" Bore 85-16

CHEVROLET, GMC, WORKHORSE, OLDSMOBILE

GM262TB-CH1 | 4.3L / 262 OHV V6 12V "Z" Chev. Turbo 4.000" Bore 91-93

GMC

IS4293T/GM | 4.3L / 4293 OHV V6 12V "X,W" GM 101.60mm Bore 97-00

ISUZU

Package Detail

Weight

0.5 lbs

Package Size

2.5x2x4.5"
