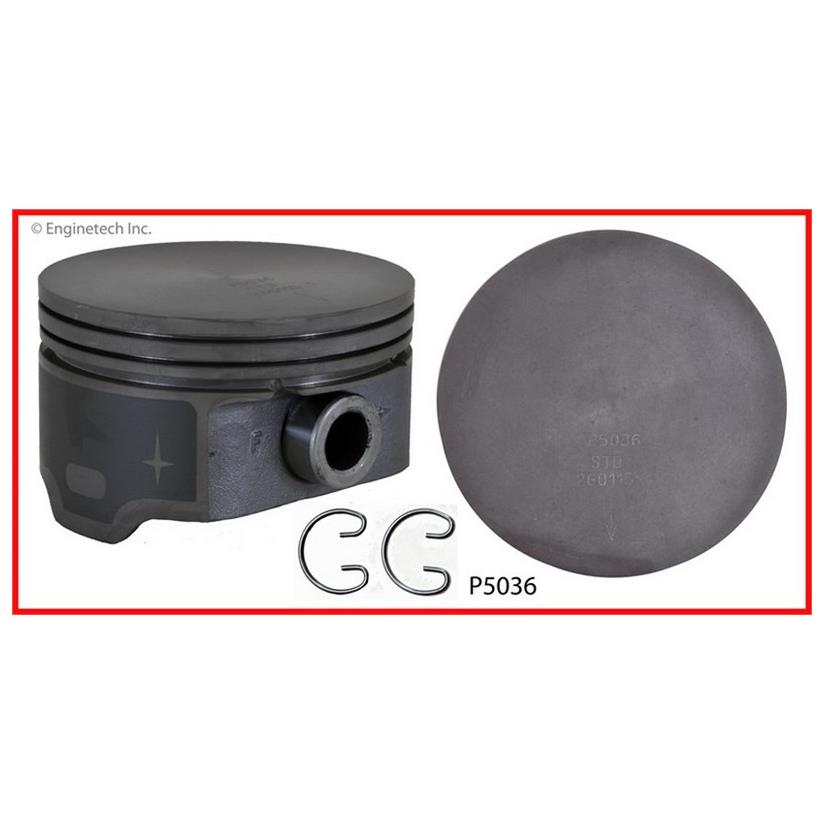

P5036(8)

Piston Set

Цена по запросу

Описание

Engine VIN code L. Flat top. No valve reliefs. 1.325" CH. Hyper. Coated skirt. Floating pin. Use C96008 rings.

Характеристики

Size

STD, .50, .75, 1.00

year

05-05

model

9-7x

notes

Flat top. 1.323" CH. Hyper. Coated skirt. Floating pin. Use C96008 rings.

Spec 1 AttributeData

0.9429

Spec 1 CatalogColumn

Pin Dia.

Spec 2 AttributeData

1.325

Spec 2 CatalogColumn

Comp. Ht

Spec 3 AttributeData

1.50

Spec 3 CatalogColumn

2nd Ring

Spec 4 AttributeData

1.50

Spec 4 CatalogColumn

Top Ring

Spec 5 AttributeData

3.00

Spec 5 CatalogColumn

Oil Ring

Spec 6 AttributeData

3.780

Spec 6 CatalogColumn

Bore Inch

Spec 7 AttributeData

96.00

Spec 7 CatalogColumn

Bore_mm

Кросс-замены

Silvolite

3520HC

Fed. Mogul

H1132CT

Двигатели

Двигатель

Бренды

4.8L / 293 OHV V8 16V GM 3.780" Bore 99-17

CHEVROLET, GMC, GM, CHEVROLET

5.3L / 325 OHV V8 "L,P" GM 95.94mm Bore 08-10

HUMMER

5.3L / 325 OHV V8 16V "C" GM 3.780" Bore 05-09

5.3L / 325 OHV V8 16V LS Series Vortec GM 3.780" Bore 99-14

GM, CHEVROLET

5.3L / 5326 OHV V8 16V "M" GM 96.00mm Bore 05-09

SAAB

5.3L / 5328 OHV V8 16V "P,M" GM 96.00mm Bore 03-06

ISUZU

GM293T-CH | 4.8L / 293 OHV V8 16V GM 3.780" Bore 99-17

CHEVROLET, GMC

GM325C-CH | 5.3L / 325 OHV V8 16V "C" GM 3.780" Bore 05-09

BUICK, CHEVROLET, PONTIAC

GM325T-CH | 5.3L / 325 OHV V8 16V LS Series Vortec GM 3.780" Bore 99-14

CHEVROLET, GMC, BUICK, CADILLAC

HU325T-CH | 5.3L / 325 OHV V8 "L,P" GM 95.94mm Bore 08-10

HUMMER

IS5328T/GM | 5.3L / 5328 OHV V8 16V "P,M" GM 96.00mm Bore 03-06

ISUZU

SB5326T | 5.3L / 5326 OHV V8 16V "M" GM 96.00mm Bore 05-09

SAAB

Package Detail

Weight

11.25 lbs

Package Size

4.5x9.25x18.25"
