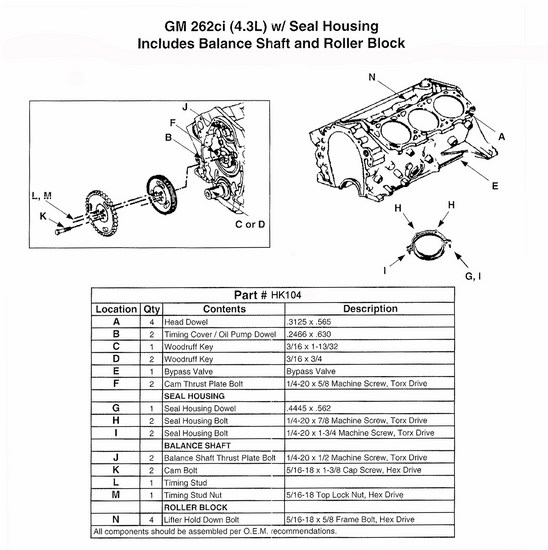

Small parts hardware kit. Engines with 1pc. rear main seal and balance shaft.
notes
Small parts hardware kit. Engines with 1pc. rear main seal & balance shaft.
Spec 1 Contents
Head Dowel
Spec 2 Contents
Tim. Cover / Oil Pump Dowel
Spec 4 Contents
Timing Stud
Spec 5 Contents
Timing Stud Nut
Spec 6 Contents
Lifter Hold Down Bolt
Spec 7 Contents
Woodruff Key
Spec 8 Contents
Woodruff Key
Spec 9 Contents
Bypass Valve
Spec 10 Contents
Cam Thrust Plate Bolt
Spec 11 Contents
Seal Housing Dowel
Spec 12 Contents
Seal Housing Bolt
Spec 13 Contents
Seal Housing Bolt
Spec 14 Contents
Balance Shaft Thrst. Plt. Bolt
Spec 1 Description
.3125 x .565
Spec 2 Description
.2466 x .630
Spec 3 Description
5/16-18 x 1-3/8
Spec 4 Description
Timing Stud
Spec 5 Description
5/16-18 Top Lock, Hex Drive
Spec 6 Description
5/16-18 x 5/8 Frame Bolt, Hex Drive
Spec 7 Description
3/16 x 1-13/32
Spec 8 Description
3/16 x 3/4
Spec 9 Description
Bypass Valve
Spec 10 Description
1/4-20 x 5/8 Machine Screw, Torx Drive
Spec 11 Description
.4445 x .562
Spec 12 Description
1/4-20 x 7/8 Machine Screw, Torx Drive
Spec 13 Description
1/4-20 x 1-3/4 Machine Screw, Torx Drive
Spec 14 Description
1/4-20 x 1/2 Machine Screw, Torx Drive
4.3L / 262 OHV V6 12V Vortec Chev. 4.000" Bore 85-16
GM,
GM, CHEVROLET,
WORKHORSE
4.3L / 262 OHV V6 12V "Z" Chev. Turbo 4.000" Bore 91-93
GM, CHEVROLET
4.3L / 262 OHV V6 12V Chev. Six Cylinder 4.000" Bore 85-14
GM
4.3L / 262 OHV V6 12V Vortec Chev. 4.000" Bore 85-16
CHEVROLET,
GMC
4.3L / 4293 OHV V6 12V "X,W" GM 101.60mm Bore 97-00
ISUZU
GM262TB-CH | 4.3L / 262 OHV V6 12V Vortec Chev. 4.000" Bore 85-16
CHEVROLET,
GMC,
WORKHORSE,
OLDSMOBILE
GM262TB-CH1 | 4.3L / 262 OHV V6 12V "Z" Chev. Turbo 4.000" Bore 91-93
GMC
IS4293T/GM | 4.3L / 4293 OHV V6 12V "X,W" GM 101.60mm Bore 97-00
ISUZU
