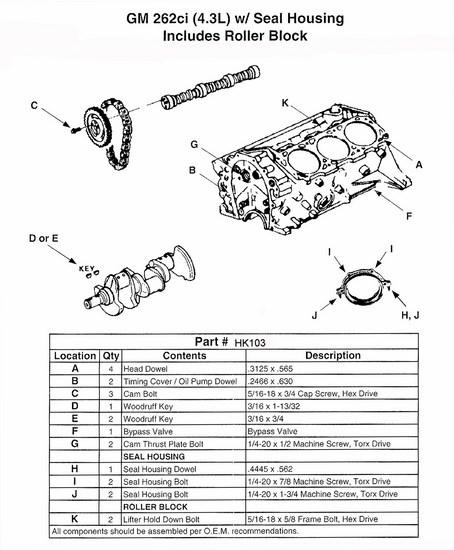

Small parts hardware kit. Engines with 1pc. rear main seal and no balance shaft.
notes
Small parts hardware kit. Engines with 1pc. rear main seal and no balance shaft.
Spec 1 Contents
Head Dowel
Spec 2 Contents
Tim. Cover / Oil Pump Dowel
Spec 3 Contents
Lifter Hold Down Bolt
Spec 5 Contents
Woodruff Key
Spec 6 Contents
Woodruff Key
Spec 7 Contents
Bypass Valve
Spec 8 Contents
Cam Thrust Plate Bolt
Spec 9 Contents
Seal Housing Dowel
Spec 10 Contents
Seal Housing Bolt
Spec 11 Contents
Seal Housing Bolt
Spec 1 Description
.3125 x .565
Spec 2 Description
.2466 x .630
Spec 3 Description
5/16-18 x 5/8 frame Bolt, Hex Drive
Spec 4 Description
5/16-18 x 3/4 Cap Screw, Hex Drive
Spec 5 Description
3/16 x 1-13/32
Spec 6 Description
3/16 x 3/4
Spec 7 Description
Bypass Valve
Spec 8 Description
1/4-20 x 1/2 Machine Screw, Torx Drive
Spec 9 Description
.4445 x .562
Spec 10 Description
1/4-20 x 1-3/4 Machine Screw, Torx Drive
Spec 11 Description
1/4-20 x 7/8 Machine Screw, Torx Drive
4.3L / 262 OHV V6 12V Vortec Chev. 4.000" Bore 85-16
GM,
GM, CHEVROLET,
WORKHORSE
4.3L / 262 OHV V6 12V "Z" Chev. 4.000" Bore 85-93
GM
4.3L / 262 OHV V6 12V "Z" Chev. Turbo 4.000" Bore 91-93
GM, CHEVROLET
4.3L / 262 OHV V6 12V Chev. Six Cylinder 4.000" Bore 85-14
GM
4.3L / 262 OHV V6 12V Vortec Chev. 4.000" Bore 85-16
CHEVROLET,
GMC
4.3L / 4293 OHV V6 12V "X,W" GM 101.60mm Bore 97-00
ISUZU
GM262CB-CH | 4.3L / 262 OHV V6 12V "Z" Chev. 4.000" Bore 85-93
CHEVROLET,
PONTIAC
GM262TB-CH | 4.3L / 262 OHV V6 12V Vortec Chev. 4.000" Bore 85-16
CHEVROLET,
GMC,
WORKHORSE,
OLDSMOBILE
GM262TB-CH1 | 4.3L / 262 OHV V6 12V "Z" Chev. Turbo 4.000" Bore 91-93
GMC
IS4293T/GM | 4.3L / 4293 OHV V6 12V "X,W" GM 101.60mm Bore 97-00
ISUZU
